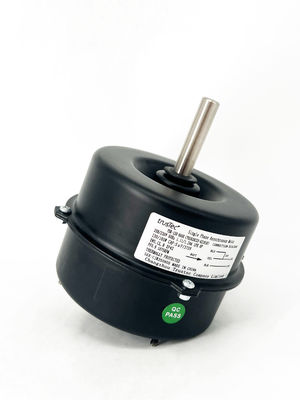

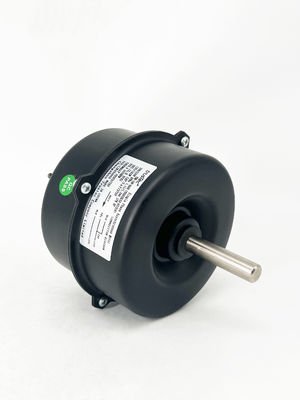

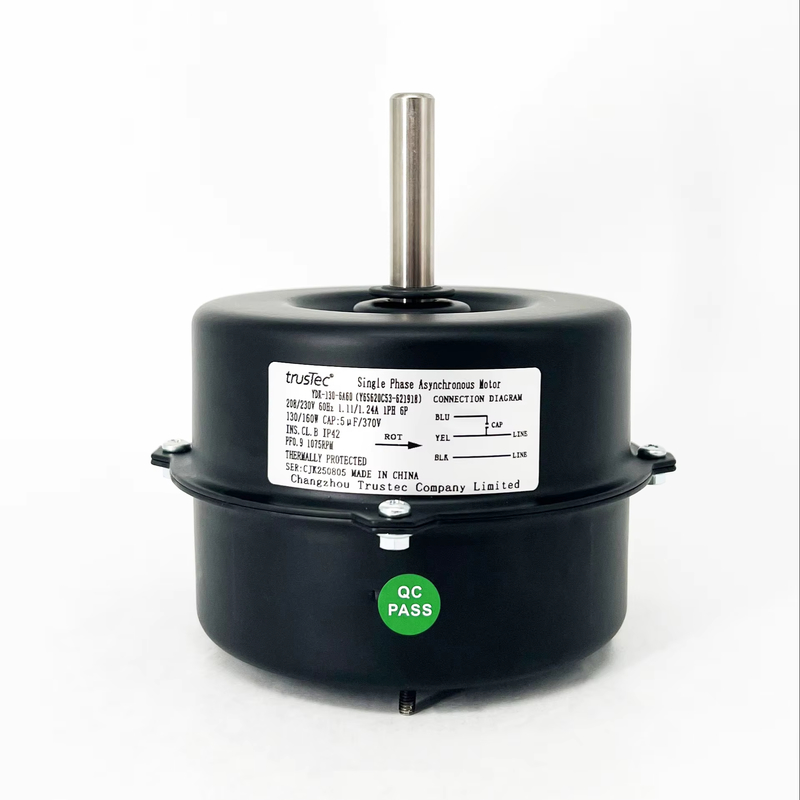

Name: AC Outdoor Fan Motor for Air Conditioner with 95mm Frame 24 Months Warranty and 1/2" Shaft Diameter
Brand: Changzhou Trustec Company Limited
SKU: YDK-130-6A60-CJK
Price: 20.20 USD
Availability: InStock

Rumah Produk Air Conditioner Fan Motor

AC Outdoor Fan Motor for Air Conditioner with 95mm Frame 24 Months Warranty and 1/2" Shaft Diameter

Detail produk:

Tempat asal:	Jiangsu, Cina
Nama merek:	trusTec
Nomor model:	YDK-130-6A60-CJK

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	200
Harga:	$20.20-21.60

Kontak

Detil Deskripsi produk

Tegangan AC:	208/230v	Kekuatan Dinilai:	130/160W
Kecepatan Dinilai:	1075RPM	Ukuran bingkai:	95mm
Jenis motor:	Kapasitor split permanen	Jenis selungkup:	TEAO (Udara Benar-Benar Tertutup)
Fase:	Fase tunggal	Diameter poros:	1/2" / 12,7mm
Panjang poros:	2.24 " / 57mm	Panjang datar:	1.57 " /40mm
Panjang cangkang motor:	3.58 " / 91mm	Panjang timbal:	43,3" / 1100mm
Frekuensi suplai:	60Hz	Saat ini:	1.11/1.24a
Kelas isolasi:	Kelas B.
Menyoroti:	95mm Frame AC Outdoor Fan Motor , 24 Months Warranty Air Conditioner Fan Motor , 1/2" Shaft Diameter HVAC Fan Motor

AC Outdoor Fan Motor for Air Conditioner - 130/160W 1075RPM 208/230V 60Hz

Features and Specifications

Product	Outdoor Fan Motor
Motor Type	Permanent Split Capacitor
Enclosure Type	TEAO (Totally Enclosed Air Over)
Thermal Overload	Equipped With An Automatic Thermal Overload
Phase	Single Phase
Shaft Flats	One Flat
Mounting Orientation	All Angle
Bearings	Ball Bearing
Mounting	Stud Mounting All Angel
Max. Ambient Temperature	40℃/104℉
Frame	95mm
Supply Voltage	208/230V
Supply Frequency	60Hz
Current	1.11/1.24A
Output HP	130/160W
Rated Speed	1075RPM
Pole	6P
IP	42
Capacitor	5uF/370V
Insulation Class	Class B
Shaft Diameter	1/2" / 12.7mm
Shaft Length	2.24" / 57mm
Flat Length	1.57" /40mm
Motor Shell Length	3.58" / 91mm
Lead Length	43.3" / 1100mm
Rotation	CCW-SE
