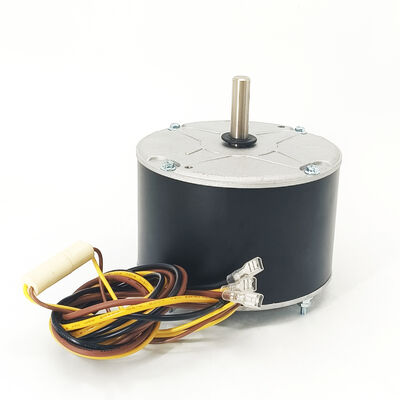

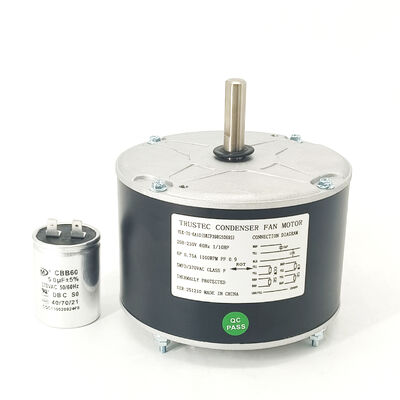

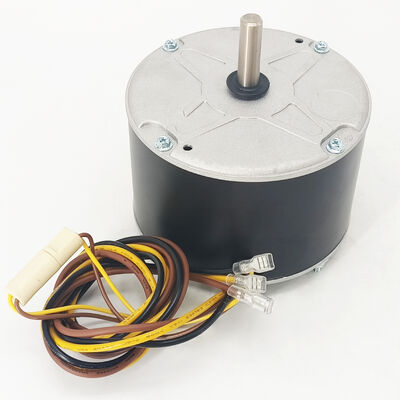

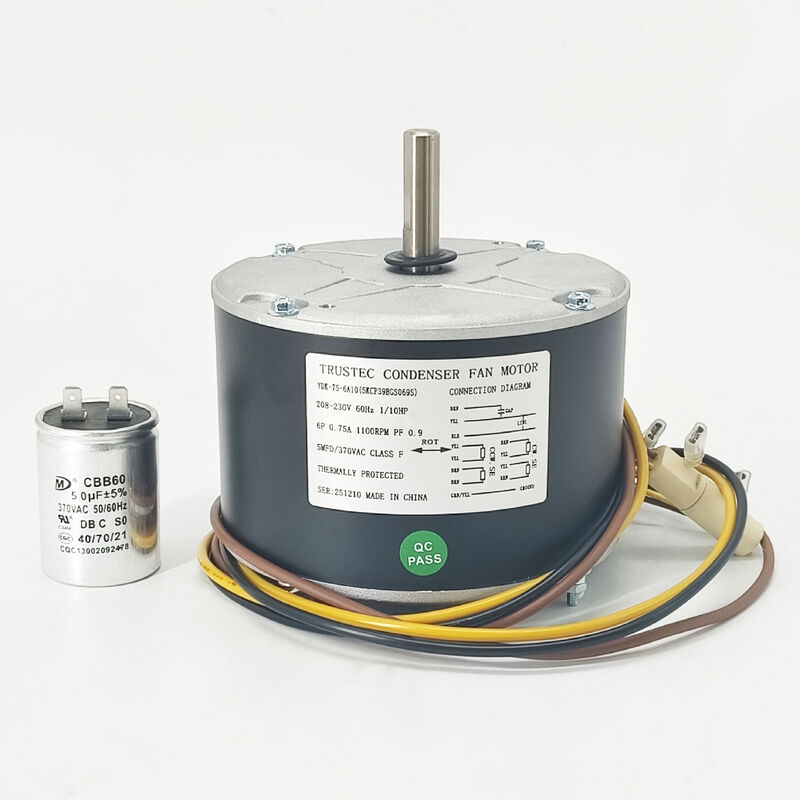

Name: Motor Kipas Kondensor - 1/10HP 208/230V 60HZ 1100RPM 5uF/370V Rotasi Bolak-Balik - Motor Pengganti 5KCP39BGS069S
Brand: Changzhou Trustec Company Limited
SKU: YDK-75-6A10-CYM
Price: 125.00 USD
Availability: InStock

Rumah Produk Kondensor Motor Kipas

Motor Kipas Kondensor - 1/10HP 208/230V 60HZ 1100RPM 5uF/370V Rotasi Bolak-Balik - Motor Pengganti 5KCP39BGS069S

Condenser Fan Motor - 1/10HP 208/230V 60HZ 1100RPM 5uF/370V Reversible Rotation - 5KCP39BGS069S Replacement Motor

Detail produk:

Tempat asal:	Changzhou, Tiongkok
Nama merek:	trusTec
Sertifikasi:	CE、UL529388
Nomor model:	YDK-75-6A10-CYM

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	200 buah
Harga:	Negotiable (FOB/CNF/CIF)
Kemasan rincian:	Kemasan karton standar, papan busa di dalam untuk perlindungan.
Waktu pengiriman:	Produk segar 15 hari setelah konfirmasi pesanan.
Syarat-syarat pembayaran:	T/T, L/C
Menyediakan kemampuan:	100.000 buah per bulan

Kontak

Detil Deskripsi produk

Product:	Condenser Fan Motor	Frame:	139mm/5.47"
Motor Type:	Permanent Split Capacitor	Supply Voltage:	208-230V
Enclosure Type:	TEAO(Totally Enclosed Air Over)	Supply Frequency:	60Hz
Thermal Overload:	Equipped With An Automatic Thermal Overload	Current:	0.75A
Phase:	Single Phase	Output HP:	1/10HP 75W
Shaft Flat:	One Flat	Speed:	1100RPM
Mounting Orientation:	All Angle	Capacitor:	5μF/370V
Insulation Class:	Class F	Pole:	6P
Rotation:	Reversible-CW/CCW	PF:	0.9
Bearings:	Ball Bearing	Max. Ambient Temperature:	70℃/158℉
Shaft Length:	51mm/2.01"	Shaft Diameter:	12.7mm/0.5"
Motor Shell Length:	82mm/3.23"	Flat Length:	32.5mm/1.28"
Lead Length:	1100mm/43.31"	Screw Length:	11mm/0.43"
Replacement Motor:	5KCP39BGS069S
