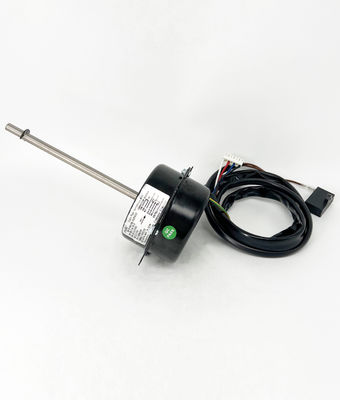

Name: 50W 1550RPM/3SPD 220V AC Indoor Fan Motor for Air Conditioner with All Angle Mounting
Brand: Changzhou Trustec Company Limited
SKU: YDK-50-4A60-KPM
Price: 13.39 USD
Availability: InStock

Rumah Produk Air Conditioner Fan Motor

50W 1550RPM/3SPD 220V AC Indoor Fan Motor for Air Conditioner with All Angle Mounting

Detail produk:

Tempat asal:	Jiangsu, Cina
Nama merek:	trusTec
Nomor model:	YDK-50-4A60-KPM

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	200
Harga:	$13.39-14.49

Kontak

Detil Deskripsi produk

Tegangan AC:	220v	Kekuatan Dinilai:	50w
Kecepatan Dinilai:	1550rpm/3spd	Ukuran bingkai:	95mm
Jenis motor:	Kapasitor split permanen	Jenis selungkup:	TEAO (Udara Benar-Benar Tertutup)
Fase:	Fase tunggal	Diameter poros:	1/2" / 12,7mm
Panjang datar poros:	0,82 " / 21mm	Panjang cangkang motor:	9.96 " / 253mm
Panjang timbal:	17.71 " / 450mm	Arah rotasi:	CCWSE
Frekuensi suplai:	60Hz	Saat ini:	0.4a
Tiang:	4p
Menyoroti:	50W AC Indoor Fan Motor , 1550RPM/3SPD Air Conditioner Fan Motor , 220V HVAC Fan Motor

AC Indoor Fan Motor for Air Conditioner - 50W 1550RPM/3SPD 220V 60HZ

Features and Specifications

Product	Indoor Fan Motor
Motor Type	Permanent Split Capacitor
Enclosure Type	TEAO (Totally Enclosed Air Over)
Thermal Overload	Equipped With An Automatic Thermal Overload
Phase	Single Phase
Shaft Flats	One Flat
Mounting Orientation	All Angle
Bearings	Ball Bearing
Mounting	Stud Mounting All Angel
Max. Ambient Temperature	40℃/104℉
Frame	95mm
Supply Voltage	220V
Supply Frequency	60Hz
Current	0.4A
Output HP	50W
Rated Speed	1550RPM/3SPD
Pole	4P
IP	42
Capacitor	2uF/450V
Insulation Class	Class B
Shaft Diameter	1/2" / 12.7mm
Flat Length	0.82" /21mm
Motor Shell Length	9.96" / 253mm
Lead Length	17.71" / 450mm
Rotation	CCWSE
