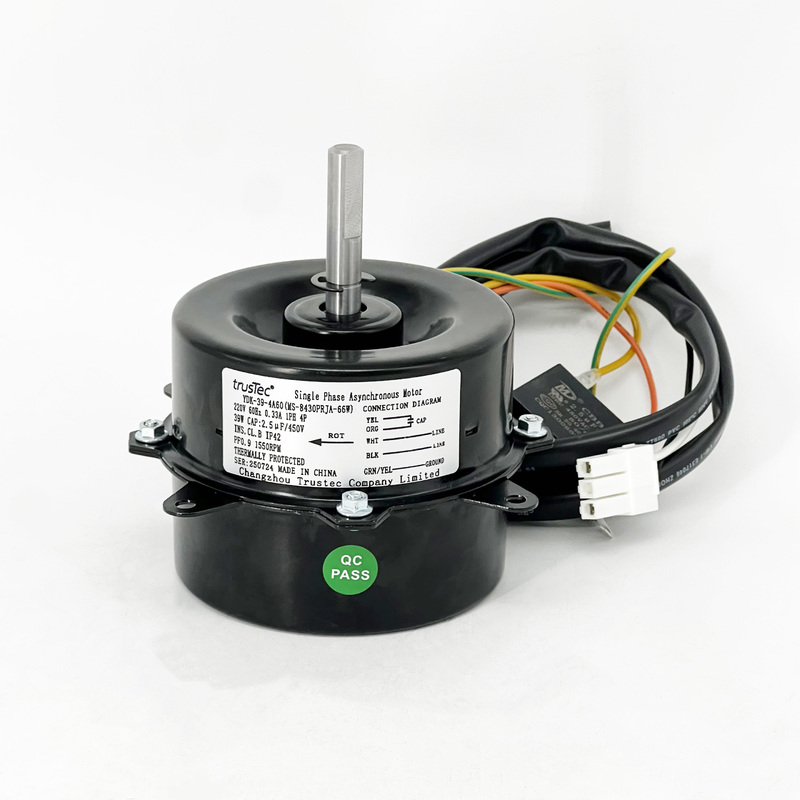

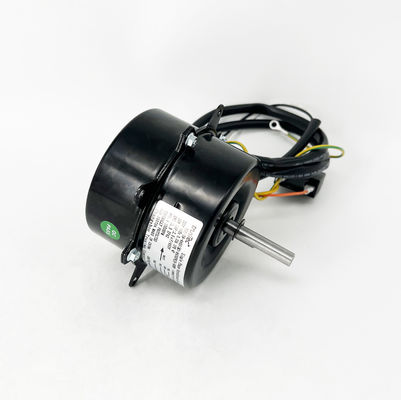

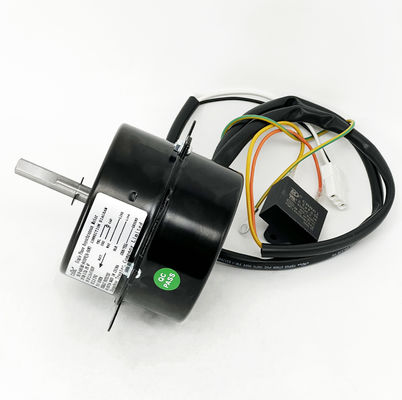

Name: 39W 1550RPM 220V Indoor Fan Motor for Air Conditioner Single Phase Permanent Split Capacitor
Brand: Changzhou Trustec Company Limited
SKU: YDK-39-4A60-KPM
Price: 15.68 USD
Availability: InStock

Rumah Produk Air Conditioner Fan Motor

39W 1550RPM 220V Indoor Fan Motor for Air Conditioner Single Phase Permanent Split Capacitor

Detail produk:

Tempat asal:	Jiangsu, Cina
Nama merek:	trusTec
Nomor model:	YDK-39-4A60-KPM

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	200
Harga:	$15.68-16.85

Kontak

Detil Deskripsi produk

Tegangan AC:	220v	Kekuatan Dinilai:	39w
Kecepatan Dinilai:	1550rpm	Ukuran bingkai:	95mm
Jenis motor:	Kapasitor split permanen	Jenis selungkup:	Teao
Fase:	Fase tunggal	Poros Datar:	Satu flat
Orientasi pemasangan:	Semua sudut	Jenis bantalan:	Laher
Suhu maksimal:	40 ℃/104 ℉	Frekuensi suplai:	60Hz
Saat ini:	0.33a	Tiang:	4p
Kelas isolasi:	Kelas B.
Menyoroti:	39W Indoor Fan Motor , 1550RPM Air Conditioner Fan Motor , 220V HVAC Fan Motor

39W Indoor Fan Motor for Air Conditioner 1550RPM 220V 60HZ Single Phase

Features and Specifications

Product	Indoor Fan Motor
Motor Type	Permanent Split Capacitor
Enclosure Type	TEAO (Totally Enclosed Air Over)
Thermal Overload	Equipped With An Automatic Thermal Overload
Phase	Single Phase
Shaft Flats	One Flat
Mounting Orientation	All Angle
Bearings	Ball Bearing
Mounting	Stud Mounting All Angel
Max. Ambient Temperature	40℃/104℉
Frame	95mm
Supply Voltage	220V
Supply Frequency	60Hz
Current	0.33A
Output HP	39W
Rated Speed	1550RPM
Pole	4P
IP	42
Capacitor	2.5uF/450V
Insulation Class	Class B
Rotation	CWSE
