| Place of Origin: | Changzhou, China |
| Nama merek: | trusTec |
| Sertifikasi: | CE、UL529388 |
| Model Number: | YSK-120-4B60-VHY |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Harga: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

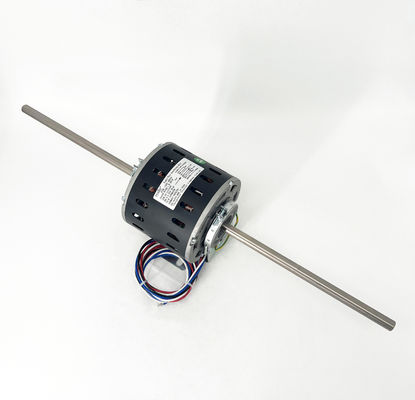

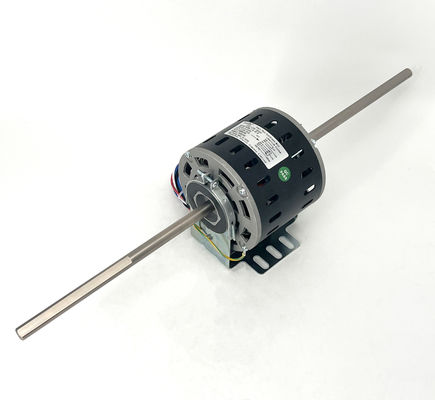

| Product: | AC Fan Coil Unit Motor | Frame: | 123mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220/230V |
| Enclosure Type: | OAO(Open Air Over) | Supply Frequency: | 50/60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.3A |
| Phase: | Single Phase | Output HP: | 120W |
| Shaft Flat: | One Flat | Speed: | 1300RPM/3SPD |
| Mounting Orientation: | All Angle | Capacitor: | 5uF/370V |
| Insulation Class: | Class B | Pole: | 4P |
| Bearings: | Ball Bearing | Shaft Diameter: | 0.5"/12.7mm |
| PF: | 0.9 | Shaft Length: | 22.44"/570mm |
| Rotation: | CW-LE | Flat Length: | 4.33"/110mm |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 39.37"/1000mm |
| Motor Shell Length: | 3.58" /91mm |
