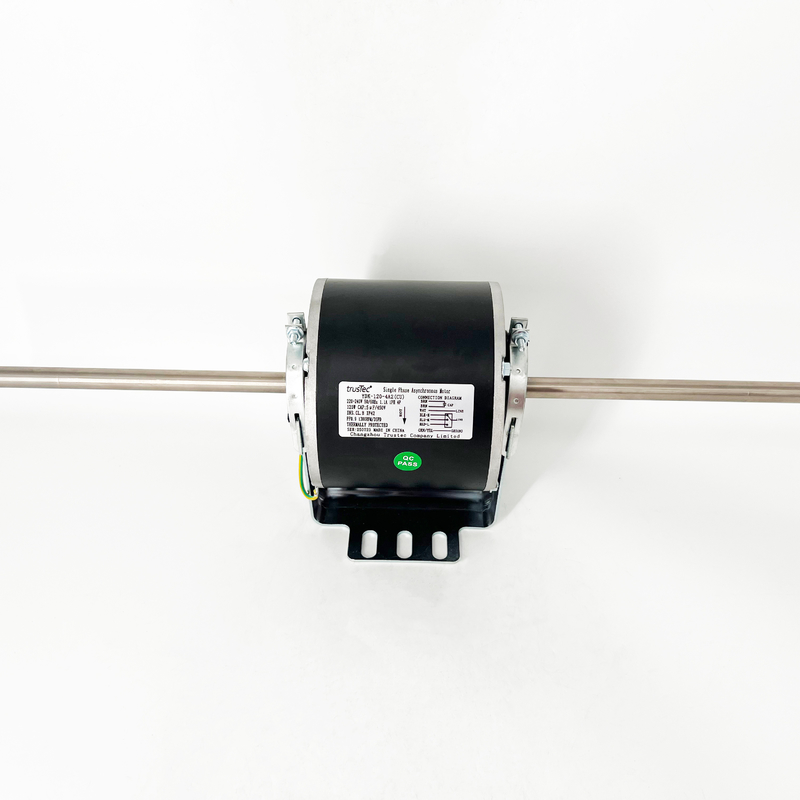

Name: Fan Coil Unit Motor with 123mm Frame 24 Months Warranty and 40℃ Max Ambient Temperature for Air Conditioner
Brand: Changzhou Trustec Company Limited
SKU: YSK-120-4A2-SGR
Price: 20.98 USD
Availability: InStock

Rumah Produk Air Conditioner Fan Motor

Fan Coil Unit Motor with 123mm Frame 24 Months Warranty and 40℃ Max Ambient Temperature for Air Conditioner

Detail produk:

Tempat asal:	Jiangsu, Cina
Nama merek:	trusTec
Nomor model:	YSK-120-4A2-SGR

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	200
Harga:	$20.98-21.60

Kontak

Detil Deskripsi produk

Tegangan AC:	220-240V	Kekuatan Dinilai:	120w
Kecepatan Dinilai:	1300rpm/3spd	Ukuran bingkai:	123mm
Jenis motor:	Kapasitor split permanen	Jenis selungkup:	Teao
Fase:	Fase tunggal	Diameter poros:	12.7mm
Panjang poros:	570mm	Panjang datar:	150mm
Panjang cangkang motor:	103mm	Panjang timbal:	1300mm
Saat ini:	1.1A	Kelas isolasi:	Kelas B.
Peringkat IP:	42
Menyoroti:	123mm Frame Fan Coil Unit Motor , 24 Months Warranty Air Conditioner Fan Motor , 40℃ Max Ambient Temperature AC Motor

Fan Coil Unit AC Motor for Air Conditioner - 120W 1300RPM/3SPD 220-240V 50/60HZ

Features and Specifications

Product	Fan Coil Unit Motor
Motor Type	Permanent Split Capacitor
Enclosure Type	TEAO (Totally Enclosed Air Over)
Thermal Overload	Equipped With An Automatic Thermal Overload
Phase	Single Phase
Shaft Flats	One Flat
Mounting Orientation	All Angle
Bearings	Ball Bearing
Mounting	Stud Mounting All Angel
Max. Ambient Temperature	40℃/104℉
Frame	123mm
Supply Voltage	220-240V
Supply Frequency	50/60Hz
Current	1.1A
Output HP	120W
Rated Speed	1300RPM/3SPD
Pole	4P
IP	42
Capacitor	5uF/450V
Insulation Class	Class B
Rotation	CW-LE
Shaft Length	22.4" / 570mm
Shaft Diameter	0.5" / 12.7mm
Flat Length	5.9" / 150mm
Motor Shell Length	4.05" / 103mm
Lead Length	51.18" / 1300mm
