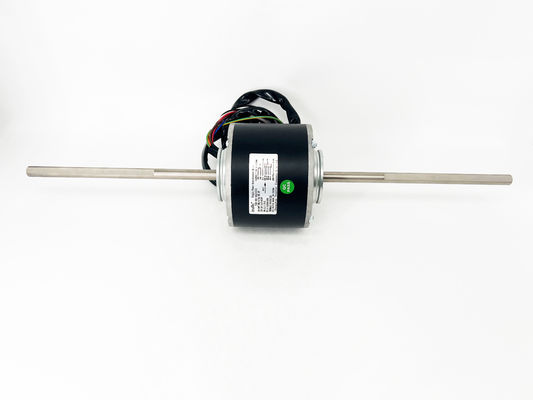

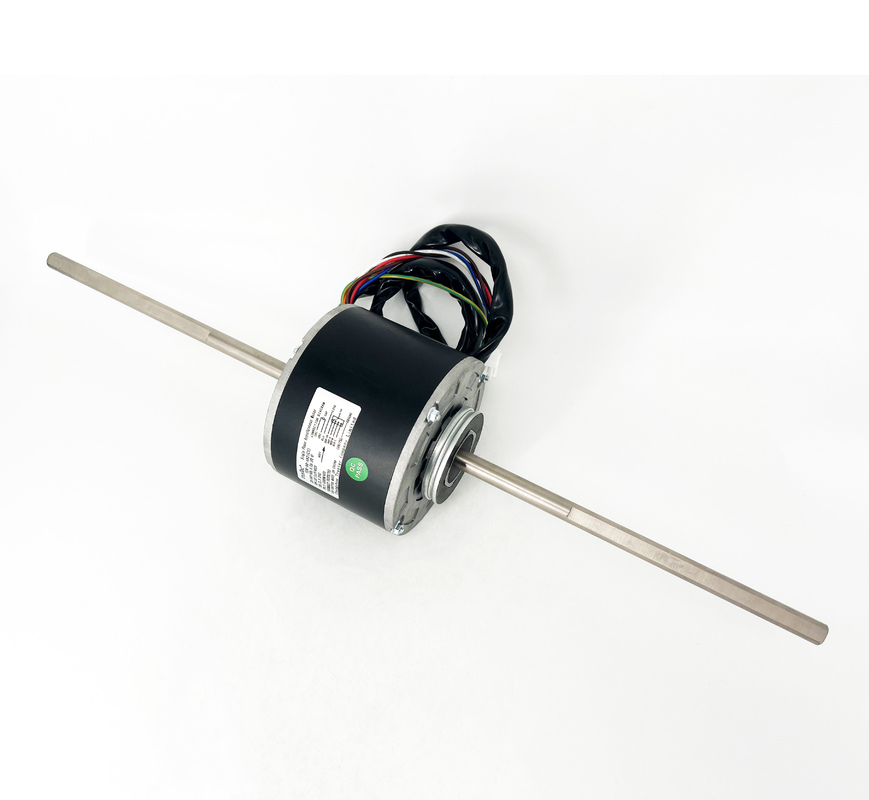

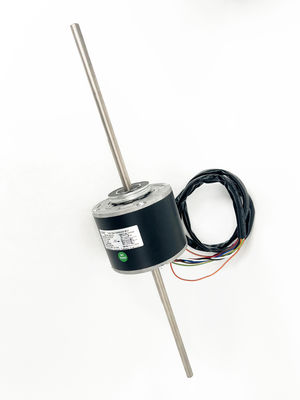

Name: Fan Coil Unit Motor AC Motor with 123mm Frame 570mm Shaft Length and 12.7mm Shaft Diameter for Air Conditioner
Brand: Changzhou Trustec Company Limited
SKU: YSK-90-4A2-SGR
Price: 14.70 USD
Availability: InStock

Rumah Produk Air Conditioner Fan Motor

Fan Coil Unit Motor AC Motor with 123mm Frame 570mm Shaft Length and 12.7mm Shaft Diameter for Air Conditioner

Detail produk:

Tempat asal:	Jiangsu, Cina
Nama merek:	trusTec
Nomor model:	YSK-90-4A2-SGR

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	200
Harga:	$14.70-15.50

Kontak

Detil Deskripsi produk

Tegangan AC:	220-240V	Kekuatan Dinilai:	90w
Kecepatan Dinilai:	1330rpm/4spd	Ukuran bingkai:	123mm
Jenis motor:	Kapasitor split permanen	Jenis selungkup:	Teao
Fase:	Fase tunggal	Diameter poros:	12.7mm
Panjang poros:	570mm	Panjang cangkang motor:	94MM
Frekuensi suplai:	50Hz	Saat ini:	0.72A
Tiang:	4p	Peringkat IP:	42
Kapasitor:	5uF/450V
Menyoroti:	123mm Frame Fan Coil Unit Motor , 570mm Shaft Length AC Motor , 12.7mm Shaft Diameter Air Conditioner Fan Motor

Fan Coil Unit AC Motor for Air Conditioner - 90W 1330RPM/4SPD 220-240V 50HZ

Features and Specifications

Product	Fan Coil Unit Motor
Motor Type	Permanent Split Capacitor
Enclosure Type	TEAO (Totally Enclosed Air Over)
Thermal Overload	Equipped With An Automatic Thermal Overload
Phase	Single Phase
Shaft Flats	One Flat
Mounting Orientation	All Angle
Bearings	Ball Bearing
Mounting	Stud Mounting All Angel
Max. Ambient Temperature	40℃/104℉
Frame	123mm
Supply Voltage	220-240V
Supply Frequency	50Hz
Current	0.72A
Output HP	90W
Rated Speed	1330RPM/4SPD
Pole	4P
IP	42
Capacitor	5uF/450V
Insulation Class	Class B
Rotation	CW-LE
Shaft Length	22.4" / 570mm
Shaft Diameter	0.5" / 12.7mm
Motor Shell Length	3.7" / 94mm
Lead Length	51.18" / 1300mm
