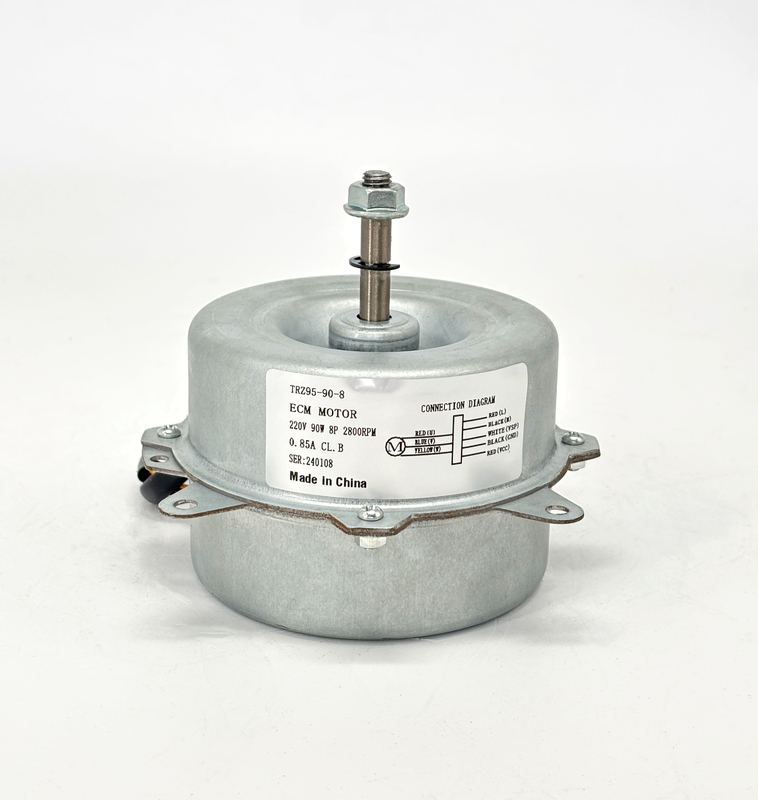

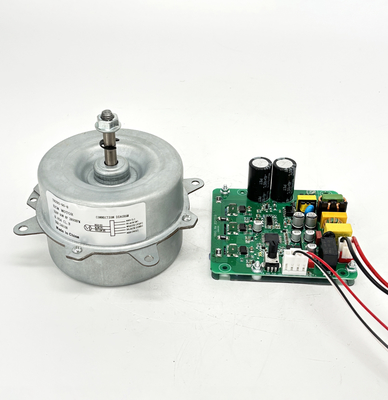

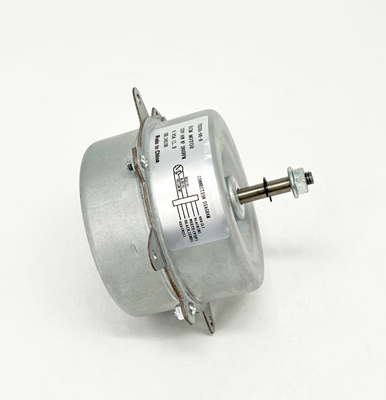

Motor ECM Untuk Kipas - 90W 2800RPM 220V 50HZ
Tempat Asal:Changzhou, Cina
Nama Merek:trusTec
Sertifikasi:CE
Nomor Model:TRZ95-90-8
Jumlah Pesanan Minimum:200 pcs
Harga:Negotiable (FOB/CNF/CIF)
Ketentuan Pembayaran:T/T, L/C
Kemampuan Pasokan:100.000 lembar per bulan
Tag:
Detail Produk
Menyoroti:
2800RPM ECM Motor Untuk Fan
,90W ECM Motor Untuk Fan
,220V ECM Motor Untuk Fan
Product:
Motor Komutasi Elektron (ECM)
Frame Size:
95mm
Motor Type:
Pengudara Drive Langsung
Supply Voltage:
220V
Enclosure Type:
TEAO (Udara Benar-Benar Tertutup)
Supply Frequency:
50Hz
Thermal Overload:
Dilengkapi dengan overload termal otomatis
Current:
0,85A
Phase:
Fase tunggal
Output Power:
90W
Mounting:
Semua Malaikat
Speed:
2800rpm
Bearings:
Laher
Poles:
8P
Mounting Orientation:
Stud Mounting Semua Malaikat
Shaft Diameter:
0,26" / 6,5mm
Insulation Class:
Kelas B
Shaft Length:
1,49"/38mm
Rotation:
CW(SE)
Lead Length:
7,87"/200mm
Max. Ambient Temperature:
40℃/104℉
Speed Control:
Kontrol Kecepatan 0-10V
