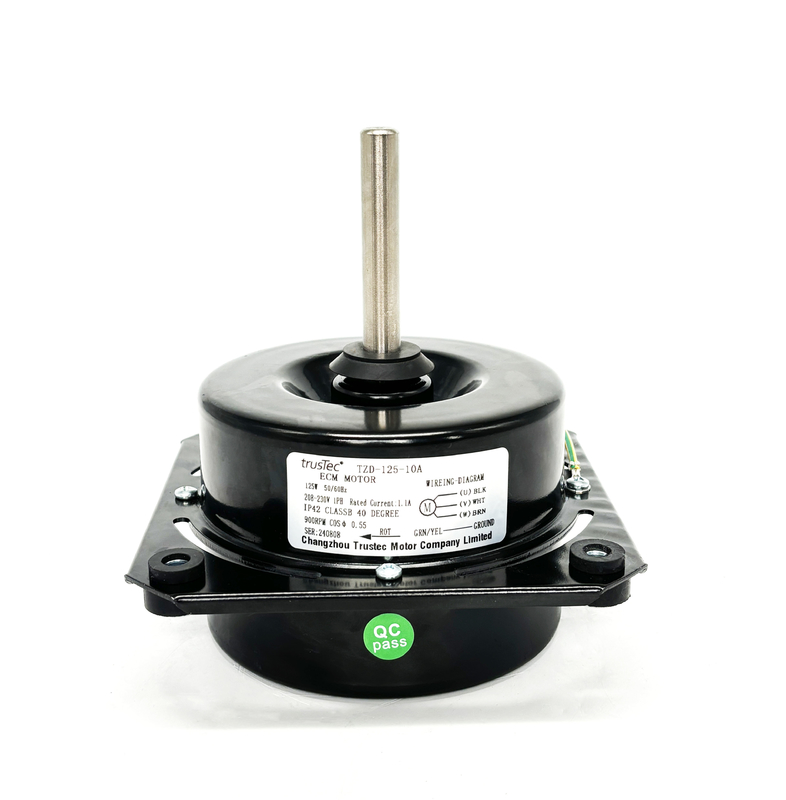

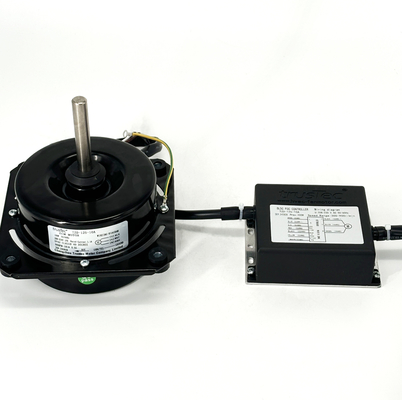

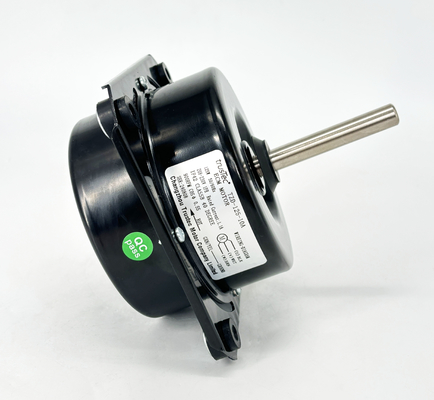

ECM Motor - 125W 900RPM 220V 50/60HZ 0-10V Kontrol Kecepatan
Tempat Asal:Changzhou, Cina
Nama Merek:trusTec
Sertifikasi:CE
Nomor Model:TZD-125-10A-TVM
Jumlah Pesanan Minimum:200 pcs
Harga:Negotiable (FOB/CNF/CIF)
Ketentuan Pembayaran:T/T, L/C
Kemampuan Pasokan:100.000 lembar per bulan
Tag:
Detail Produk
Menyoroti:
125W BLDC Motor
,Motor BLDC 900RPM
,Motor BLDC 220V
Product:
Motor Komutasi Elektron (ECM)
Supply Voltage:
220v
Enclosure Type:
TEAO (Udara Benar-Benar Tertutup)
Supply Frequency:
50/60hz
Thermal Overload:
Dilengkapi dengan overload termal otomatis
Current:
1,65A
Phase:
Fase tunggal
Output Power:
125W
Mounting:
Stud Mounting Semua Malaikat
Speed:
900RPM
Bearings:
Laher
Poles:
10P
Mounting Orientation:
Semua sudut
Shaft Length:
3,04" / 78mm
Insulation Class:
Kelas B
Frame Size:
120MM
Max. Ambient Temperature:
40℃/104℉
Shaft Diameter:
1/2" / 12,7mm
Rotation:
CCW (SE)
Flat Length:
1,99" / 50mm
Speed Control:
0-10V VSP
Lead Length:
11,8" / 300mm
Other:
FG dan 10VDC
