TRUSTEC MOTOR PABRIK TERPERCAYA ANDA
Penjualan & dukungan:

|
| Place of Origin: | Changzhou, China |
| Nama merek: | trusTec |
| Sertifikasi: | CE、UL529388 |
| Model Number: | YDK-250-6A60-USM |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Harga: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

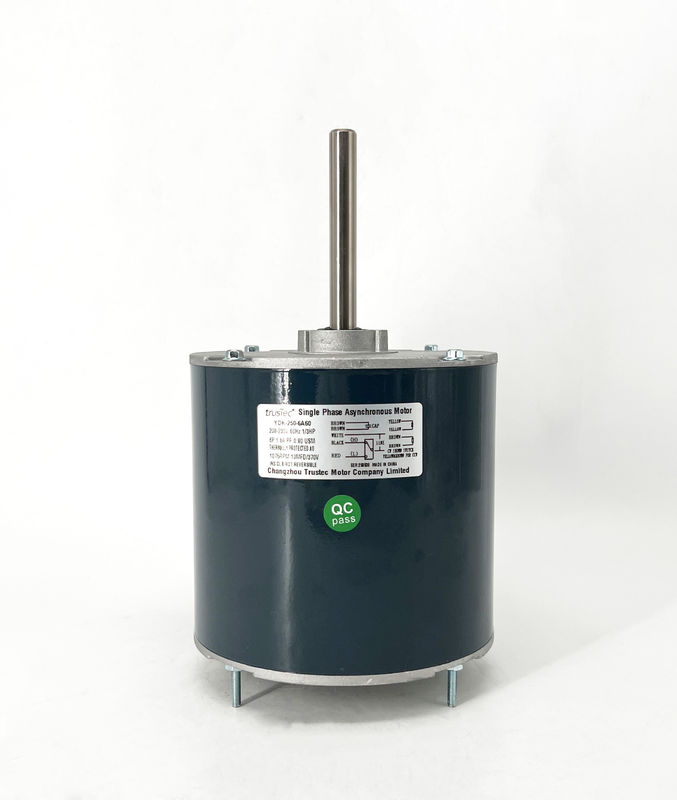

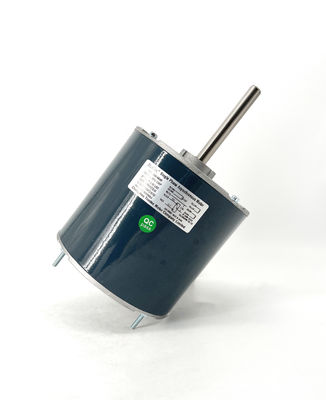

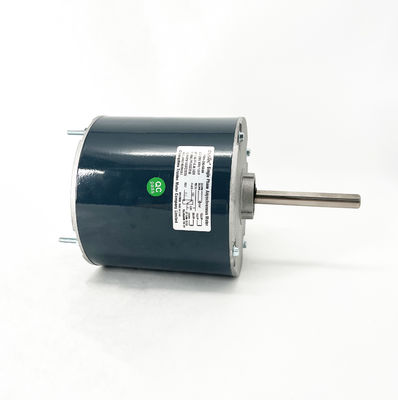

| Product: | Condenser Fan Motor | Frame: | 142mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 208-230V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.8A |
| Phase: | Single Phase | Output HP: | 250W |
| Shaft Flat: | One Flat | Speed: | 1075RPM |
| Mounting Orientation: | All Angle | Capacitor: | 10MFD/370V |
| Insulation Class: | Class B | Pole: | 6P |
| Bearings: | Ball Bearing | Shaft Diameter: | 12mm/0.47" |
| Rotation: | Reversible | Shaft Length: | 101.6mm/4.00" |
| PF: | 0.90 | Flat Length: | 90mm/3.54" |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 890mm/35.04" |
| Motor Shell Length: | 135mm/5.31" | Screw Length: | 13mm/0.51" |
