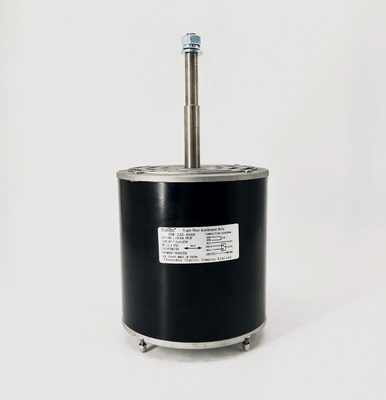

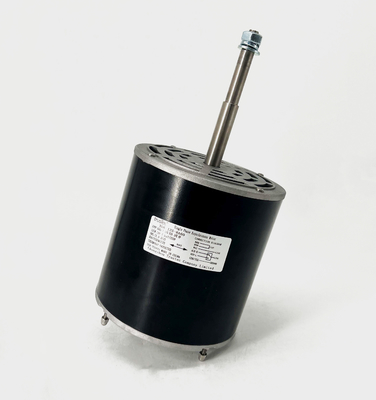

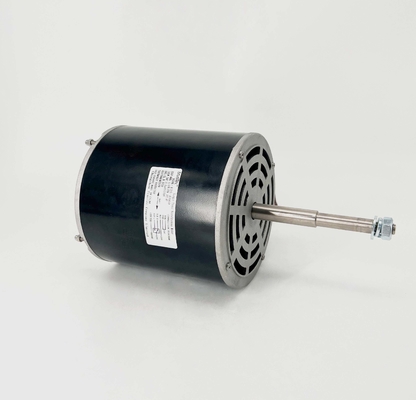

Motor Kipas Blower Rangka 48 - 1/6HP 220V 60HZ 850/700RPM
Tempat Asal:Changzhou, Cina
Nama Merek:trusTec
Sertifikasi:CE、UL529388
Nomor Model:YDK-125-8A60-BMF
Jumlah Pesanan Minimum:200 pcs
Harga:Negotiable (FOB/CNF/CIF)
Ketentuan Pembayaran:T/T, L/C
Kemampuan Pasokan:100.000 lembar per bulan
Tag:
Detail Produk
Menyoroti:
Motor kipas angin 220V
,Motor kipas angin 1/6HP
,Motor kipas angin 700RPM
Product:
Motor Kipas Kondensor
Frame:
48 bingkai/143mm
Motor Type:
Kapasitor Terpisah Permanen
Supply Voltage:
220V
Enclosure Type:
OAO (udara terbuka)
Supply Frequency:
60Hz
Thermal Overload:
Dilengkapi Dengan Thermal Overload Otomatis
Current:
1.1/0.82a
Phase:
Fase Tunggal
Output HP:
1/6 HP
Shaft Flat:
Satu Datar
Speed:
850/700rpm
Mounting Orientation:
Semua Sudut
Capacitor:
7.5uf/370v
Insulation Class:
Kelas B
Pole:
8P
Bearings:
Laher
Shaft Diameter:
0.591" / 15mm
Rotation:
CW/CCW
Shaft Length:
4.685 '"/119mm
Flat Length:
1.496 "/38mm
Max. Ambient Temperature:
40℃/104℉
Lead Length:
47.24 "/1200mm
Motor Shell Length:
5.866 "/149mm
Deskripsi Produk
