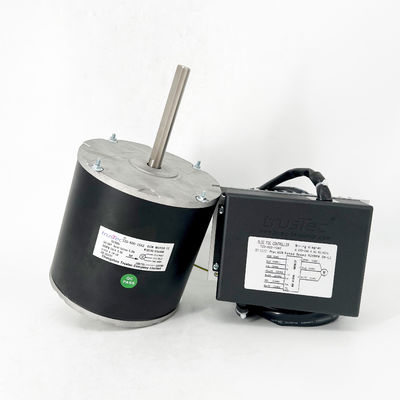

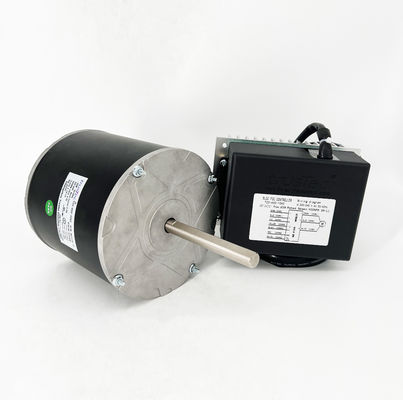

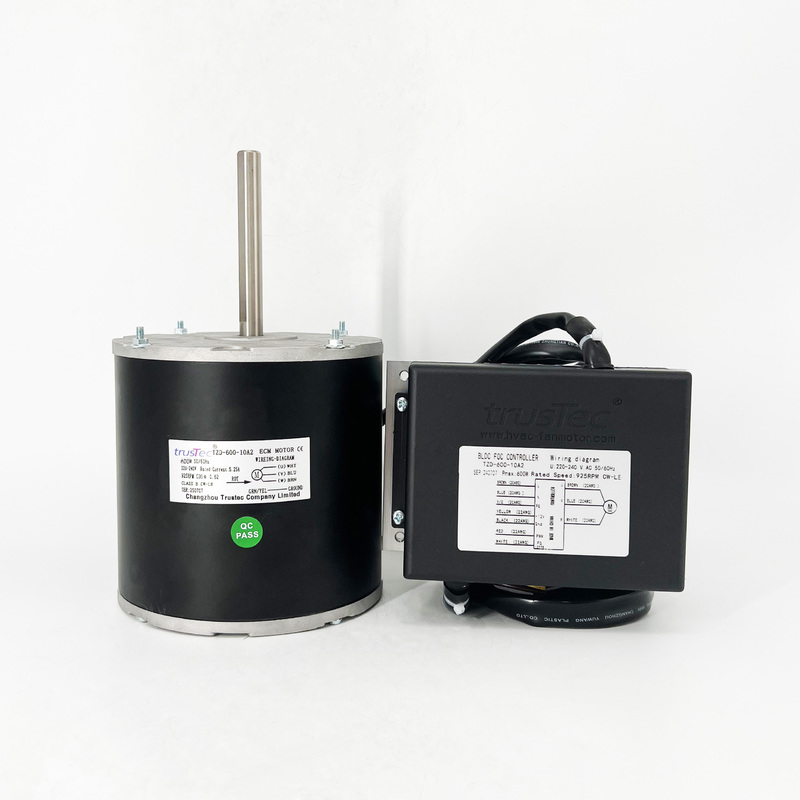

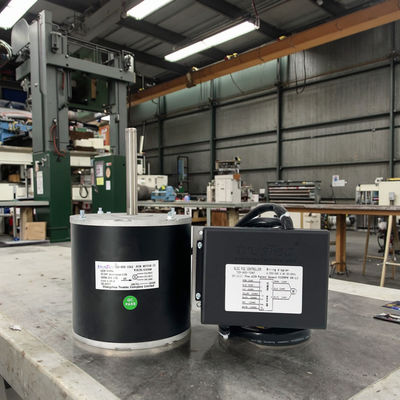

Name: 600W 220-240V 50/60HZ EC Condenser Fan Motor for Air Conditioner with 925RPM Speed
Brand: Changzhou Trustec Company Limited
SKU: TZS-600-10A2-NLR
Price: 228.70 USD
Availability: InStock

Rumah Produk Air Conditioner Fan Motor

600W 220-240V 50/60HZ EC Condenser Fan Motor for Air Conditioner with 925RPM Speed

Detail produk:

Tempat asal:	Jiangsu, Cina
Nama merek:	trusTec
Nomor model:	TZS-600-10A2-NLR

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	200
Harga:	$228.70-230.10

Kontak

Detil Deskripsi produk

Arus terus menerus:	5.25a	Efisiensi:	yaitu 3
Kecepatan:	925rpm	Ukuran bingkai:	143mm
Pemasangan Motor:	Pemasangan Kaki	Kekuatan Dinilai:	220-240w
Tegangan Dinilai:	220-240V	Jenis motor:	Motor Kipas Kondensor
Jenis selungkup:	Teao	Fase:	Fase tunggal
Diameter poros:	12.7mm	Panjang poros:	98.5mm
Suhu Sekitar Maks:	40 ℃	Mode kontrol:	PWM
Polandia:	10P
Menyoroti:	600W EC Condenser Fan Motor , 220-240V Air Conditioner Fan Motor , 50/60HZ HVAC Fan Motor

EC Condenser Fan Motor for Air Conditioner - 600W 925RPM 220-240V 50/60HZ

Premium Electronically Commutated Motor for HVAC Systems

This high-efficiency EC condenser fan motor delivers reliable performance for air conditioning units with its advanced electronically commutated technology and durable construction.

Key Specifications

Feature	Specification
Motor Type	Condenser Fan Motor
Enclosure Type	TEAO (Totally Enclosed Air Over)
Thermal Protection	Automatic Thermal Overload
Phase	Single Phase
Mounting	Stud Mounting All Angle
Bearings	Ball Bearing
Supply Voltage	220-240V
Supply Frequency	50/60HZ
Current	5.25A
Output Power	220-240W
Rated Speed	925RPM
Frame Size	5.6" / 143mm
Shaft Diameter	0.5" / 12.7mm
Shaft Length	3.87" / 98.5mm
Flat Length	3.54" / 90mm
Motor Shell Length	5.47" / 139mm
Lead Length	19.69" / 500mm
Max. Ambient Temperature	40℃/104℉
Control Mode	PWM
Poles	10P
Rotation	CW-LE
Insulation Class	Class B

Design Advantages

All-angle mounting for flexible installation in various orientations
Thermal overload protection ensures safe operation under demanding conditions
Ball bearing construction provides smooth operation and extended service life
PWM control enables precise speed regulation for optimal performance
