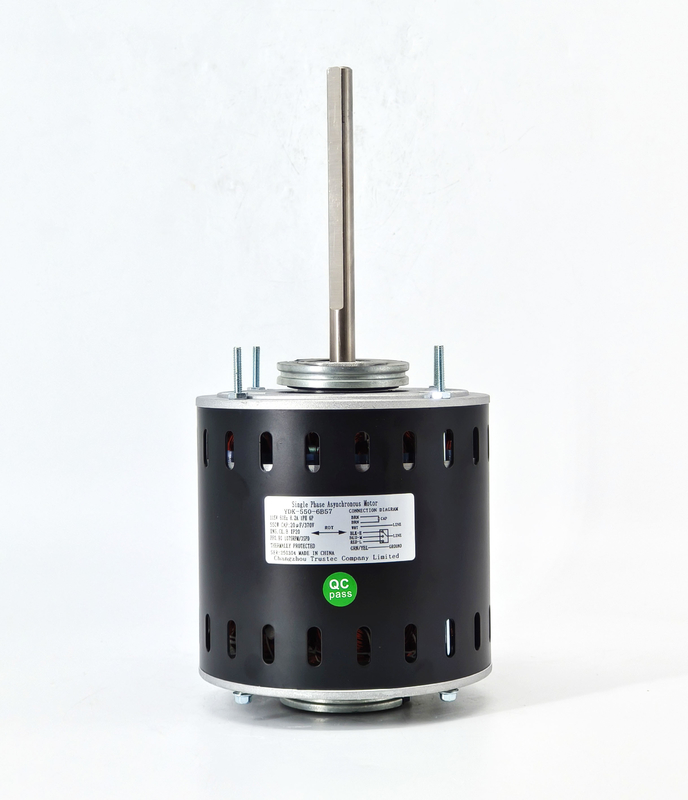

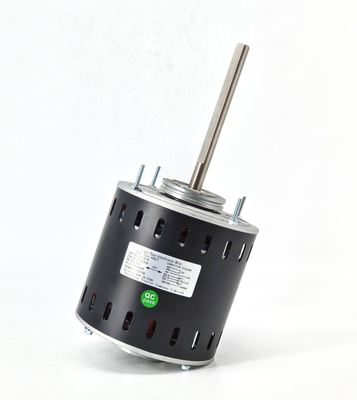

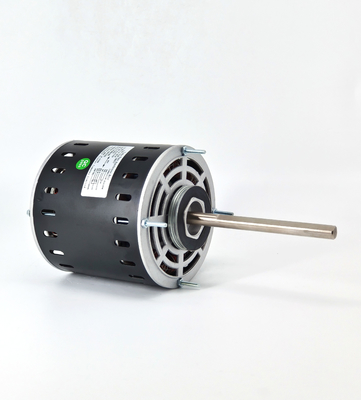

48 Frame Direct Drive Blower Motor - 3/4HP 1075RPM/3SPD 115V 60HZ Reversible - 1/2'*5 3/4'' poros
Tempat Asal:Changzhou, China
Nama Merek:trusTec
Sertifikasi:CE、UL529388
Nomor Model:YDK-550-6B57-UNB
Jumlah Pesanan Minimum:200 pcs
Harga:Negotiable (FOB/CNF/CIF)
Ketentuan Pembayaran:T/T, L/C
Kemampuan Pasokan:100,000 pcs per month
Tag:
Detail Produk
Menyoroti:
3/4HP AC Blower Motor
,1075RPM AC Blower Motor
,115V 60HZ AC Blower Motor
Product:
Motor Blower Penggerak Langsung
Frame:
Nema 48
Motor Type:
Kapasitor Terpisah Permanen
Supply Voltage:
115v
Enclosure Type:
OAO (Udara Terbuka)
Supply Frequency:
60Hz
Thermal Overload:
Dilengkapi Dengan Thermal Overload Otomatis
Current:
8.2A
Phase:
Fase Tunggal
Output HP:
3/4HP
Shaft Flats:
Satu Datar
Rated Speed:
1075RPM/3SPD
Mounting Orientation:
Semua Sudut
Capacitor:
20uF/370V
Mounting:
Stud Mounting Semua Malaikat
Shaft Diameter:
1/2" / 12,7mm
Insulation Class:
Kelas B
Shaft Length:
5,75" / 146,05mm
Bearings:
Laher
Flat Length:
4,6" / 116,84mm
Max. Ambient Temperature:
40℃/104℉
Lead Length:
22,8" / 580mm
Rotation:
Reversibel
Screw Length:
1,62" / 41,1 mm
Pole:
6p
Motor Shell Length:
5,48" / 139,2mm
PF:
0.9
