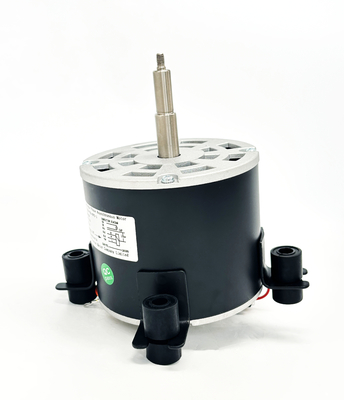

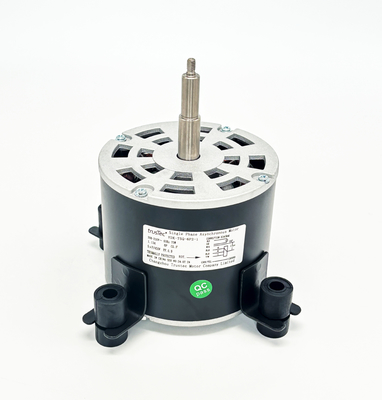

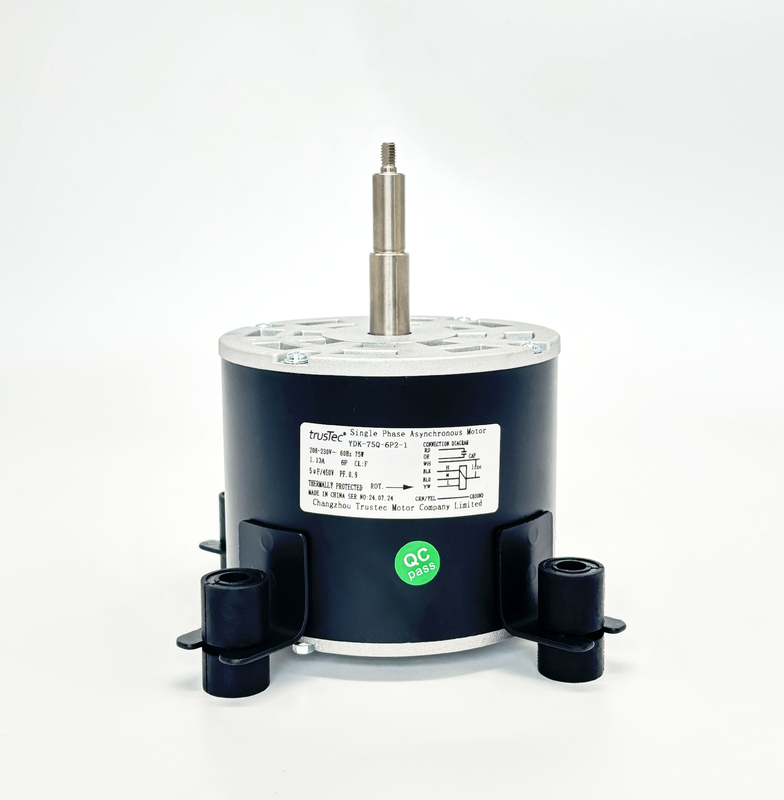

Motor Blower Bingkai 42/120mm - 75W 208-230V 60HZ
Tempat Asal:Changzhou, Cina
Nama Merek:trusTec
Sertifikasi:CE
Nomor Model:YDK-75Q-6P2-1
Jumlah Pesanan Minimum:200 pcs
Harga:Negotiable (FOB/CNF/CIF)
Ketentuan Pembayaran:T/T, L/C
Kemampuan Pasokan:100.000 lembar per bulan
Tag:
Detail Produk
Menyoroti:
208-230V Blower Motor
,120mm Blower Motor
,75W Blower Motor
Product:
Motor Blower Penggerak Langsung
Frame Size:
42 Bingkai/120mm
Motor Type:
Kondensator split permanen
Supply Voltage:
220/230V
Enclosure Type:
OAO (Udara Terbuka)
Supply Frequency:
60Hz
Thermal Overload:
Dilengkapi dengan overload termal otomatis
Current:
1.13A
Phase:
Fase tunggal
Output Power:
75W
Mounting Orientation:
Semua Malaikat
Shaft Diameter:
1/2" / 1,72 mm
Insulation Class:
Kelas F
Lead Length:
27,5" / 700mm
Mounting:
Stud Mounting Semua Malaikat
Poles:
6P
Bearings:
Laher
Max. Ambient Temperature:
40℃/104℉
Rotation:
CCW-SE
Capacitor:
5uF/370V
Deskripsi Produk
Ringkasan Produk
Produk Terkait
-
Direct Drive HVAC Blower Motor 115VAC 1/4HP 1075/3RPM Persetujuan UL
Direct Drive Blower Motor - 115VAC 1/4HP 1075/3RPM - UL Approval Cross Reference CROSS REFERENCE TRUSTEC MOTOR.pdf TRUSTEC DESCRIPTION CENTURY/ AO SMITH FASCO GE/ GENTEQ US MOTORS/ EMERSON WAGNER YORK SOURCE 1 MARATHON MARS NORDYNE/ PARTNERS CHOICE PACKARD RHEEM/RUUD PROTECH CONDENSER FAN MOTORS CTM5-727 1/6HP 208-230V 1075/1 RPM FSE1016S D917 3727 1859 WG840727 S1-FHM3727 X411 10727 01-0160 43727 W51-16CJA1-01 CTM5-728 1/4HP 208-230V 1075/1 RPM FSE1026S D909 3728 1860
-
UL Penggerak Langsung HVAC Motor Blower 208~230VAC 1/2HP 1075/3RPM Motor Penangan Udara
Direct Drive Blower Motor - 208~230VAC 1/2HP 1075/3RPM - Air Handler Motor - UL Approval Direct Drive Blower Motor PCS Pernanent Split Capacitor Motor Type 1/6,1/5,1/4,1/3,1/2,or 3/4 Rated Horsepower Supply Voltage 115 or 208/230 VAC Supply Frequency 60 hertz Insulation Class B 825 or 1075rpm Rated Speed Run Capacitor 370 VAC10 to 20 μF Temperature Rating 60℃ / 140℉ Equipped with an automatic thermal overload Current 1.6 to 9.5 amps at rated speed and horsepower Open Air Over
-
Motor Blower Sentrifugal HVAC Tiga Kecepatan - Pemasangan Braket 6cm / 9cm
6cm/9cm bracket blower motor three Speed , HVAC Centrifugal Fan motor Product specification: Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM offered. Electrical parameters: Model YDK-150-6B Output Power 1/5HP Full load Amps 1.4A Frequency 50/60Hz Voltage 208-230V Speed 920/3 speed Insulation class B Structure ball bearing, with capacitor Product application: Condenser and condenser
-
PCS Permanen Split Capacitor Direct Drive Tungku Blower Motor 115VAC 280 ~ 230VAC 1/2HP 1075/3RPM
KEY FEATURES OF DIRECT DRIVE BLOWER MOTOR Direct Drive Blower Motor PCS Pernanent Split Capacitor Motor Type 1/6,1/5,1/4,1/3,1/2,or 3/4 Rated Horsepower Supply Voltage 115 or 208/230 VAC Supply Frequency 60 hertz Insulation Class B 825 or 1075rpm Rated Speed Run Capacitor 370 VAC10 to 20 μF Temperature Rating 60℃ / 140℉ Equipped with an automatic thermal overload Current 1.6 to 9.5 amps at rated speed and horsepower Open Air Over Frame 48 NEMA Ball Bearing Shaft Diameter 1/2"
